INNER FLANGE SLEWING BEARINGS WITH OUTER GEAR TEETH 231 SERIES factory and suppliers

INNER FLANGE SLEWING BEARINGS WITH OUTER GEAR TEETH 231 SERIES

Short Description:

1. DESCRIPTION OF 231 SERIES

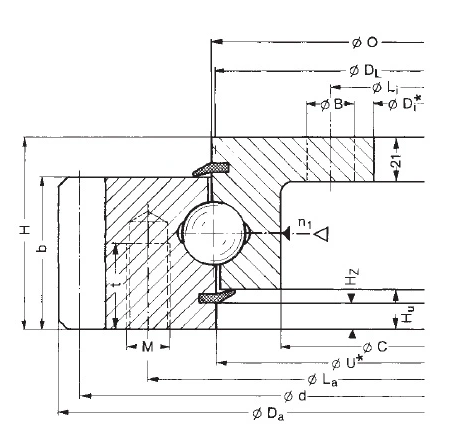

XZWD slewing bearings in the 231 standard series have one row of four contact point ball bearings with spacers in Nylon. These products are comprised of forged rings, which are machined to form a structure with an outer, square section, rigid toothed ring and an inner flanged ring. XZAD slewing bearings in the 231 standard series are supplied pre-greased.

2. ADVANTAGES

XZWD slewing bearings in the 231 standard series represent a good compromise between performance and rigidity, with only one flanged ring. The real advantage of this construction lies in its easy assembly, whilst the double seal means it can be installed even in outdoor or dusty environments. XZWD 231 series standard slewing rings can also rotate at 30rpm under low loads.

3. APPLICATIONS

The flange slewing ring has the same structure with four contact ball slewing ring, but the weight is light and could be used for some light type machinery appliacaitons:
* food machinery;
* welding tables;
* process automation industry;
* packaging industry;
* lightweight cranes;
* lightweight self-propelled cranes;
* canning machinery;
* lightweight reels;
* etc.

Send email to us Download as PDF

Product Detail

FAQ

Product Tags

1. Introduction of XZWD

XZWD is a professional manufacturer in flanged slewing bearings since 2009. XZWD slewing bearings can also design and make other standard type and non-standard type ball slewing bearings, trailer slewing bearing and high precision slewing bearings as per customer’s different technical requirements.

XZWD supplies to order a range of flanged slew bearings from Xuhzou of China.

They are available used in a wide range of agricultural and other applications.

2. Product description of 231 series

Manufactured according to the highest industrial standards, the flanged series represent a natural extension of the classical product range, built on high quality product designing and manufacturing.

Manufactured from forged or rolled rings, the flanged slewing bearings have no joints, thus optimizing the use of material and maximizing the characteristics of lightness and compactness of the product and of your application.

Below is a summary of the features, advantages and technical characteristics of the 231 flanged slewing bearing series.

Please contact us with your specific requirements.

Previous: DOUBLE FLANGE SLEWING BEARINGS WITH SINGLE BALL BEARING ROW, NO GEAR TEETH, STANDARD 230 SERIES

Next: OUTER FLANGE SLEWING BEARINGS WITH INNER GEAR TEETH 232 SERIES

1. Our manufacturing standard is according to machinery standard JB/T2300-2011, we also has been found the efficient Quality Management Systems(QMS) of ISO 9001:2015 and GB/T19001-2008.

2. We devote ourselves to the R &D of customized slewing bearing with high precision,special purpose and requirements.

3. With abundant raw materials and high production efficiency, the company can supply products to customers as quickly as possible and shorten the time for customers to wait for products.

4. Our internal quality control includes first inspection, mutual inspection, in-process quality control and sampling inspection to ensure product quality. The company has complete testing equipment and advanced testing method.

5. Strong after-sales service team, timely solve customer problems, to provide customers with a variety of services.
